Kampa Dometic

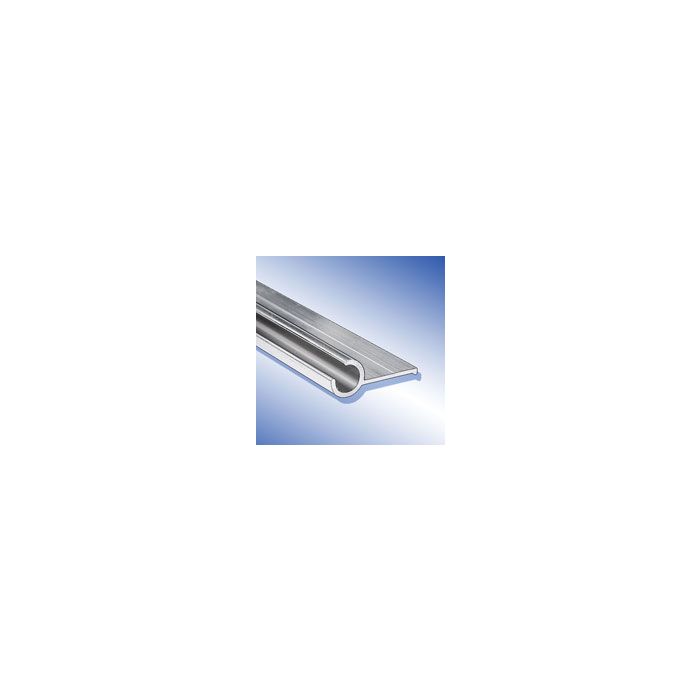

Keder Rail ALU Raw 3 m
The keder rail is used to attach awnings, sunroofs and canopies to caravans, motorhomes, vans, boats, trucks and buildings. The keder rail can be fastened with screws, rivets or other fasteners (gluing).
Keder Rail Aluminum Raw 3 m
A keder rail is used to attach canopies, awning or sunroof to vans, SUVs and motorhomes. The single-lane aluminum piping rail is suitable for piping with a diameter of 5.5-7.5 mm. The channel opening is at a 45 ° angle. The edge of the fabric into which the cedar tape is sewn slides along the rail channel and forms a smooth, continuous waterproof connection between the building and the awning. Mounting the rail is very easy. It can be glued or screwed on, depending on the application. Where high tensile forces (wind, etc.) are expected, screwing is necessary and is also recommended for safety reasons. You can easily drill the holes yourself. Our rails are made of high quality aluminum, so the rails are very durable.
Technical data for Keder Rail TS
Length: 3 m
Width: 29 mm
Mounting plate: 18 mm
Dot notch: 8 mm
Material thickness: 1.5 mm
Outside rail diameter: 11 mm
Diameter of the rail inside: 8 mm
Suitable for keder piping with a diameter of: 5.5 - 7.5 mm
Edge below between mounting plate and channel: 3.6 mm
Rail opening: at an angle of 45 °
| Manufacturer | Kampa Dometic |
|---|
